[Trade-in Program] Qsee 5MP DVR Security Camera System with Full-time Color QH08045YC
- 5MP super HD resolution
-
8 channels
-
Color night vision
-
Person and vehicle detection
Warm tips: No hard drive comes with the DVR system.
Shipping & Returns
Free shipping within United States.
Due to the increase of orders during the peak season, the order processing time may be delayed 1-3 business days than usual. Thank you for the patience and understanding.
Make sure to read and understand the return policy before making a purchase. Qsee support returns under specific conditions.
Compatibility
The DVR supports QH05YC analog camera.
Ultra HD Resolution
Color Night Vision
Vehicle Detection
Person Detection
Weather Resistance
Unlock the potential of ultra HD
At the HD cameras lies a powerful 5MP image sensor, delivering stunningly sharp video and true-to-life color representation. With a wide field of view, this camera monitors a broader area, providing you with a more comprehensive view and enabling earlier motion detection. Embrace the promise of exceptional clarity and coverage, revolutionizing your surveillance experience like never before.
Superior nighttime clarity
Designed to excel in the presence of ambient lighting, Qsee DVR security system offers the best night vision experience available. It provides you with the option to activate the most extended-range full-color nighttime video ever witnessed. Say goodbye to the darkness and embrace unmatched visibility and surveillance capabilities, even during the darkest nights.
Elevating Security, Connectivity, and Convenience
Embrace the versatility of our camera, which safeguards your home or business while providing tender vigilance for your precious bundle of joy.
Tech Specs
Ultra HD Resolution
The 5MP wired security system delivers stunningly sharp and detailed video footage, ensuring every detail is captured with remarkable precision. Enjoy unparalleled image quality, providing you with invaluable insights.
Color Night Vision
Unleash the power of night vision with an incredible range of up to 82 feet. Unlike traditional infrared night vision, these advanced warm LED lights allow you to see the world in vibrant colors even in low-light conditions.

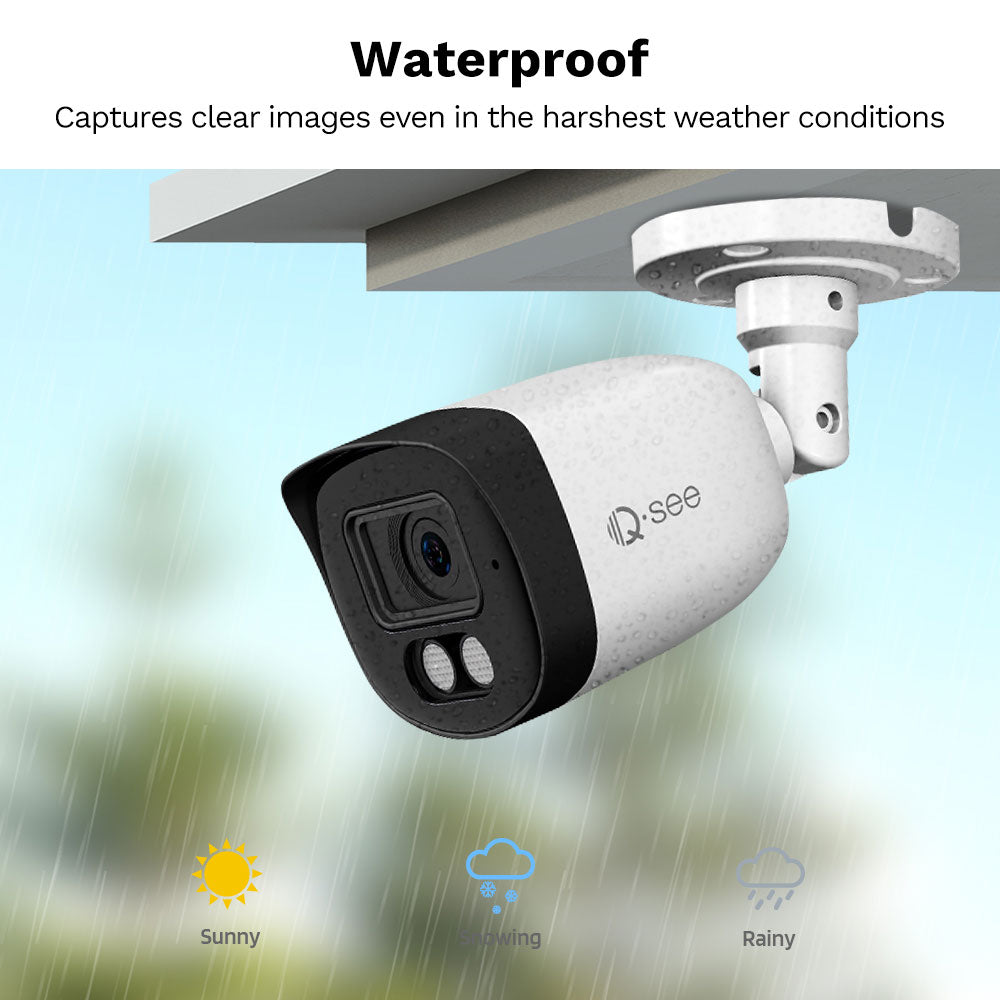

IP67 Weather Resistance
This analog camera boasts an IP67 waterproof rating, offering robust protection year-round. Its durable housing is designed to withstand various conditions, including rain, wind, extreme temperatures, and humidity.
Motion, Person, Vehicle Detection
The feature ensures precise detection of motion, human presence, and even car movement. Stay informed and receive instant alerts, keeping you aware of any potential threats or activities within the monitored area.
H.265 Video Compression
Experience the benefits of H.265 compression. With up to 50% reduced bit rate compared to H.264, it delivers high-quality video, lower data consumption, and faster downloads, all at a low cost.
Remote Access
With Qsee PC client and mobile app, you can stay connected to your surveillance setup on-the-go. Whether you're at the office or traveling, monitor your cameras and view live feeds with ease.
① DVR *1
② Cameras *4
③ 20m BNC cables *4
④ Power adapter *2
⑤ HDMI cable *1
⑥ USB mouse *1
⑦ Power splitter *1
⑧ 1m network cable *1
⑨ Surveillance card *4
⑩ Positioning stickers *4
⑪ Screws *4
⑫ User manual *1
| Security System | Model No. | QH08045YC |
| Configurations | 1*8CH DVR with 4* Cameras | |
| DVR System | Video Compression | H.265/H.264 |
| Operating | Embedded Linux | |
| Resolution | 2560*1440;1920*1080;1280*1024;1280*720 | |
| Output Signal | TVI;AHD;CVI;CVBS;IP;self-adaption | |
| Video | Preview | 8CH 5MP;1080P;720P;960H |
| Playback | 8CH 5MP;1080P;720P;960H | |
| Recording Mode | Regular/Manual/Event | |
| Audio | Audio Out/In | 4CH/1CH |
| Storage | Interface Type | 1 SATA Interface |
| Capacity | Up to 10TB capacity for each disk | |
| Backup | U-Disk | Yes |
| USB | Yes | |
| File Format | DAV,AVI | |
| Network | Network Protocol | MSIP,TCP/IP, DHCP, Cloud,P2P,DDNS, NTP, SMTP,ONVIF |
| Features | Motion Detection | Support 8CH |
| Video Loss Detection | Support 8CH | |
| Human Detection | Support 8CH | |
| Car Detection | Support 8CH | |
| Interface | BNC Input | 8* BNC IN |
| BNC Output | 1* BNC OUT | |
| HDMI Output | 1* HDMI Interface | |
| VGA Output | 1* VGA Interface | |
| CVBS Output | 1* CVBS Interface | |
| RS485 Output | 1* RS485 Interface | |
| Network Interface | 1*100 / 1000 Mbps Ethernet | |
| USB Interface | 2 *USB 2.0 (support upgrade, backup, mouse) | |
| General(DVR) | Working Temperature | -10°C ~ +55°C (14 °F ~ 131 °F) |
| Power Supply | DC 12V/2A | |
| Dimensions | 255 x 225 x 42mm | |
| Weight | 1.8kg | |
| Camera | Image Sensor | 5MP 1/2.7" CMOS |
| Resolution | 2592*1944 | |
| Image System | NTSC/PAL | |
| Light ON | 3 Lux @ (F1.6, AGC ON) | |
| Lens | Fixed 3.6mm | |
| LEDs | 2 PCS 3500K Warm Light | |
| SNR | >52dB（AGC off） | |
| Night Vision Distance | 20m | |
| Video Frame Rate | 5.0MP@20fps/12.5fps | |
| Video Output | TVI/AHD/CVI/CVBS(Default TVI) | |
| General(Camera) | Power Supply | DC 12V/2A |
| Operating Temperature | -20° C ~+ 50° C | |
| Operating Humidity | 90% or less | |
| Protection Level | IP67 | |
| Power Consumption | Max. 3W | |
| Material | Aluminum | |
| Dimensions | 152 x 68.3 x 62.9mm | |
| Weight | 0.45kg | |
| Package Box | Size | 360 x 95 x 275mm |
| Weight | 5.3kg |
